OVERVIEW

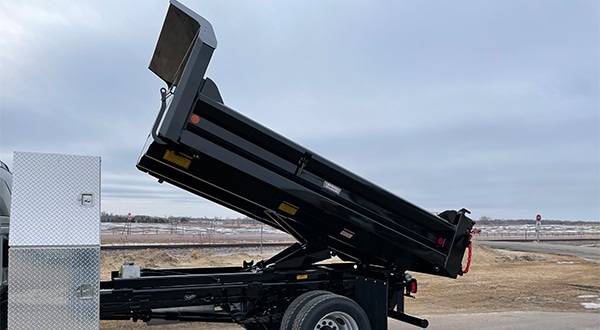

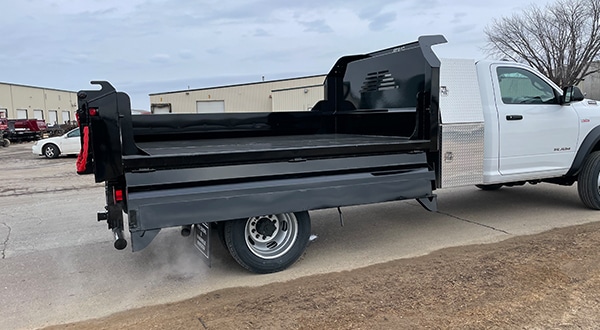

The evolutionary E-Tipper gives you all of the most desired features in a dump body – strength, value and style.
From the sculpted front and rear pillars to the one-piece seamless sides, to the western crossmemberless understructure, the E-Tipper combines good looks and durability with superior design.
Standard options can be added to create the most versatile body for your needs. Body options and accessories add function and are easy to order.
Every E-Tipper body is backed by Crysteel’s 5-year warranty.
Materials
- Constructed of Hi-Tensile A1011 steel
- 12 gauge sides – 10 gauge floor (rigid sides)
- 7 gauge floor (fold-down sides)
Specs
- Lengths: 8’1″, 9′, 9’6″, 10′, 10’6″ 11′, 11’6″, 12′
- Side heights: 10″- 22″
- Capacities: 2.2 – 5.4 cu yds.
- Inside / Outside width: 87″/96″
Features and Options
- Crossmemberless understructure
- Smooth, single-wall sides
- 6″ Side board pockets
- Integral cabshield with plasma cut window
- Full height corner posts with radius corner pillars
- Single-lever Quick-Drop tailgate
- Spreader chains and chain slot brackets on corner posts
- Integrated tarp receivers
- Double panel tailgate

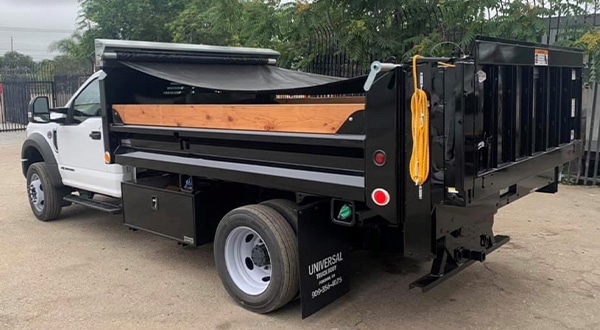

- Spring loaded single-lever for fold-down sides
