Marathon®

Trunnion mounted telescopic hoists with up to 47 ton lifting capacity, ideal for 9'-16.5' dump bodies.

Cylinder pivots on maintenance-free, greaseless composite Teflon bearings.

High-pressure hydraulics deliver maximum efficiency with smaller pumps that weigh less and do more. Oversize hoses mean fast cycle times.

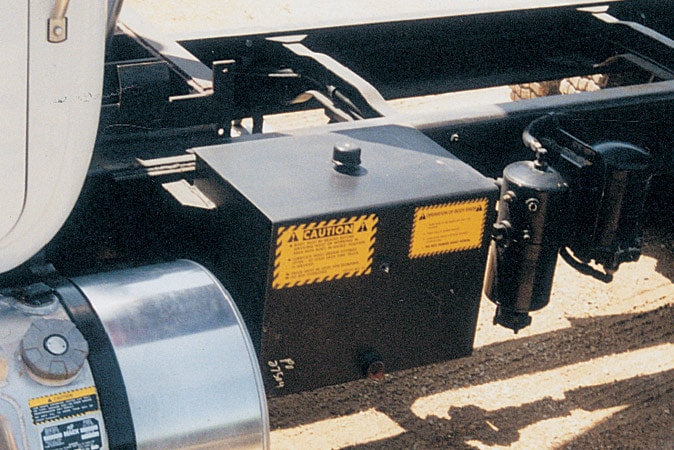

Reservoirs have a sight gauge for easy visual inspection.

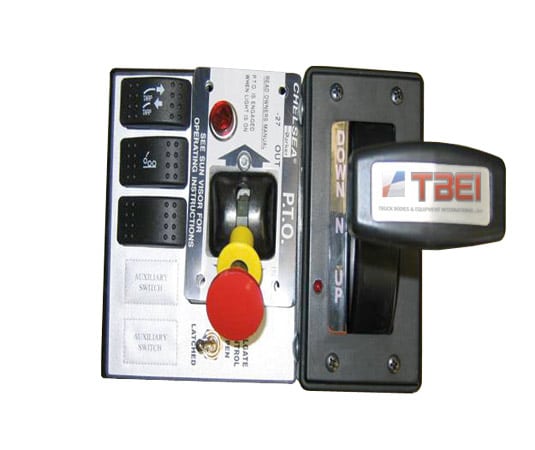

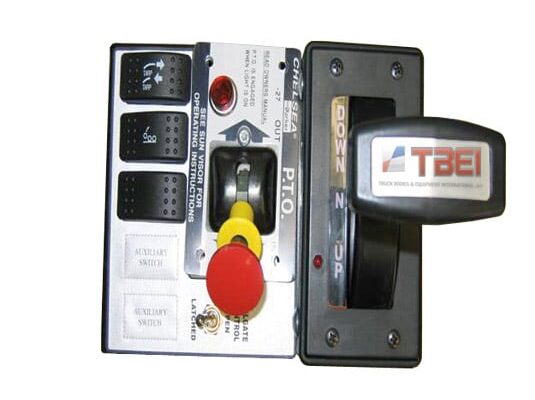

Single-lever locking shifter with sealed cable is standard.

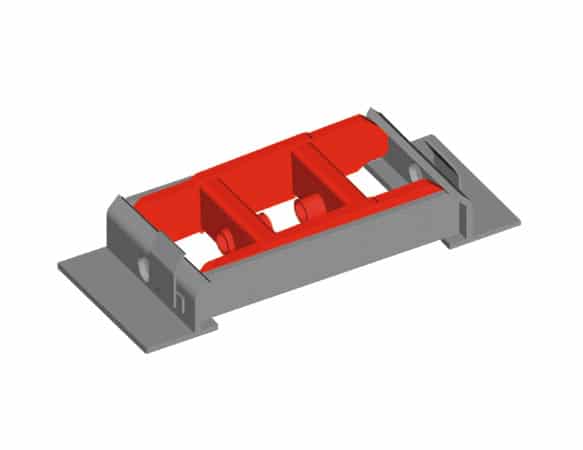

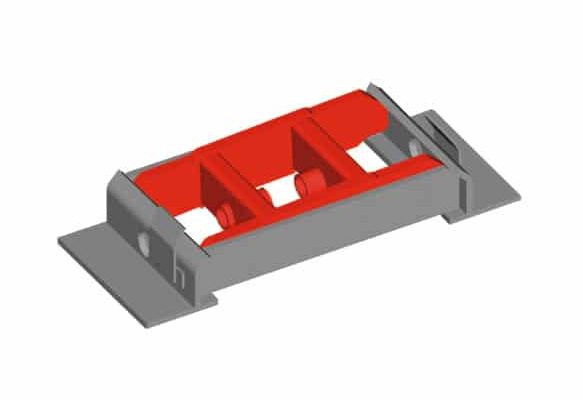

Crysteel’s floating cradle is designed to reduce bending stress levels between truck frame and dump body frame.

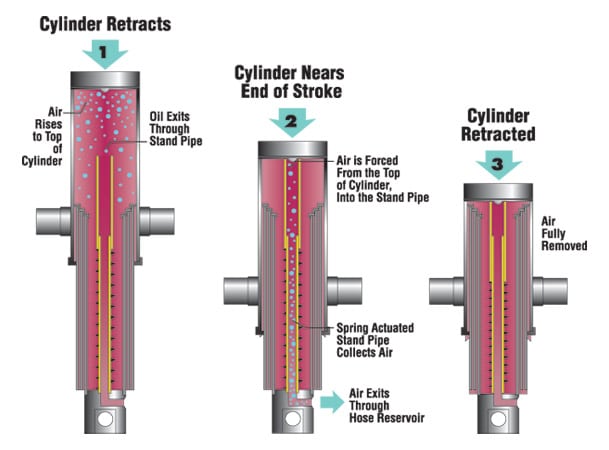

Crysteel’s patented Auto-Bleed cylinders eliminate the inconvenience and dangers of manually bleeding air out of your cylinder by automatically and effortlessly removing unwanted air from the hydraulic system safely and cleanly.

Smooth acting final stages finish the job to a minimum 50-degree dump angle.

Built-in wipers keep the cylinder surface and seals clean and free of dirt, grit and dust build-up.

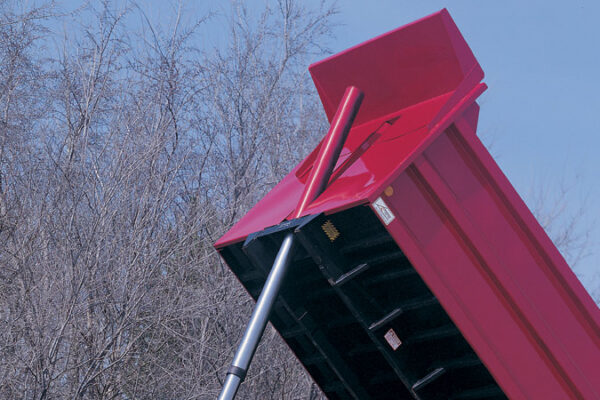

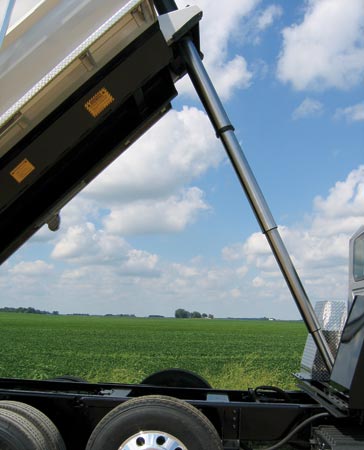

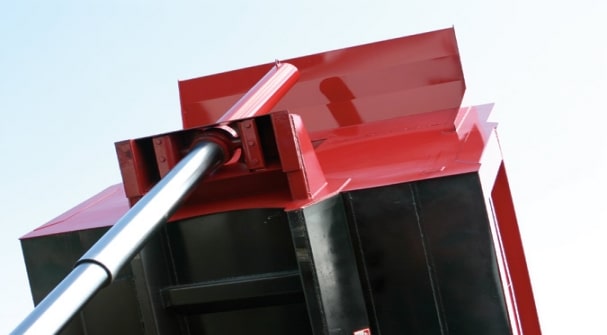

Marathon’s body mount lifts directly on the long beams for efficient power delivery and superior stability throughout the dump cycle.

OVERVIEW

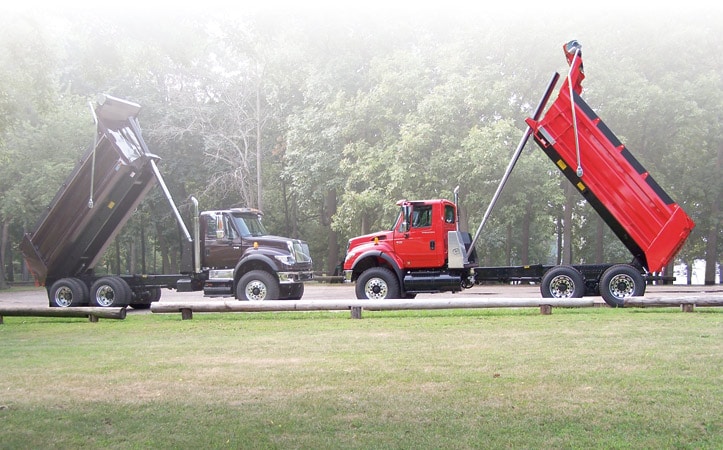

Crysteel’s Marathon telescopic hoist offers powerful lifting without wasted doghouse space. Marathon is trunnion mounted, providing unmatched stability among conventional top pinned telescopic hoists.

For traveling over uneven terrain when stress between truck frame and dump body are present, Crysteel designed the floating cradle. It allows the hoist cylinder to pivot up to 2.5 degrees side to side, reducing bending tension. The floating cradle on Marathon hoists is designed especially for haulers that move in and out of construction, demolition and mining sites.

FEATURES

  • Cylinder pivots on maintenance-free, greaseless composite Teflon® bearings
  • Reinforced lower cylinder tube and full-width angle hinge help ensure stability
  • Single-lever locking shifter with sealed cable
  • Reservoirs have sight gauge for easy visual inspection

LITERATURE & MANUALS

Product Literature

Marathon Hoist Literature

Manuals

Email sales@crysteel.com if you are in need of an older version of your manual

Specifications

Login to distributor login for specifications
